Mosaic Esterhazy Overland Conveyor K3 to K2

Location: Esterhazy, SK

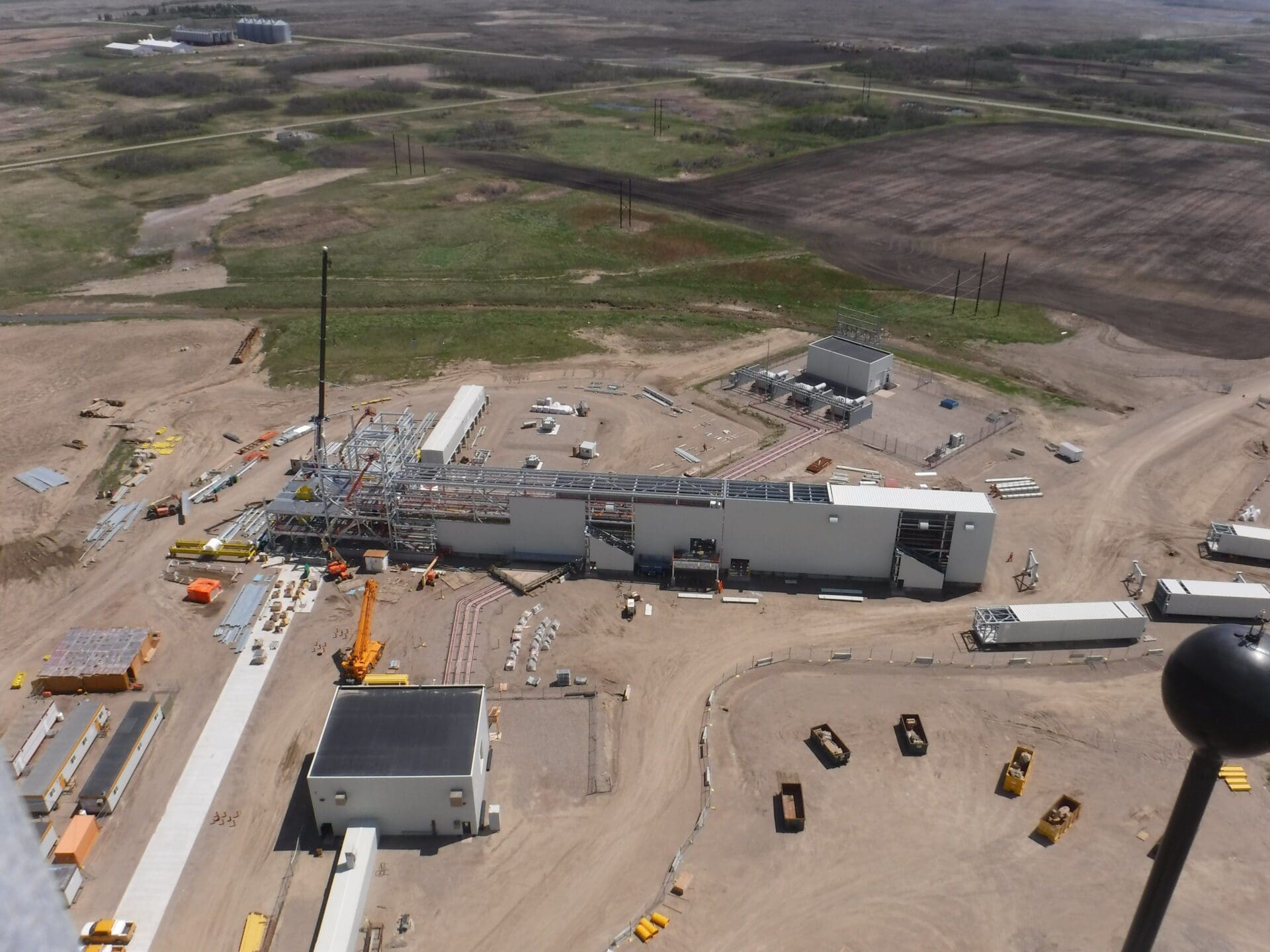

Graham was awarded the contract to construct the Overland Belt Conveyor system to transport raw potash between the newly developed mine site at Mosaic K3 to existing mill facilities at the K2 mine site near Esterhazy, SK. The conveyor system is the longest single belt, overland conveyor in Canada with a total length of 11 kilometers passing through 9 tunnels, one of which passes under a major highway. The conveyor system was constructed on top of a gravel road base passing through an environmentally sensitive wetland region.

Contract Value

$6.7M CAD

Prime Consultant

ThyssenKrupp Industrial Solutions (Canada)

Project Owner

Mosaic Company

Contract Format

Stipulated Price

Completion Date

Oct 2017

Contract Duration

8 months
